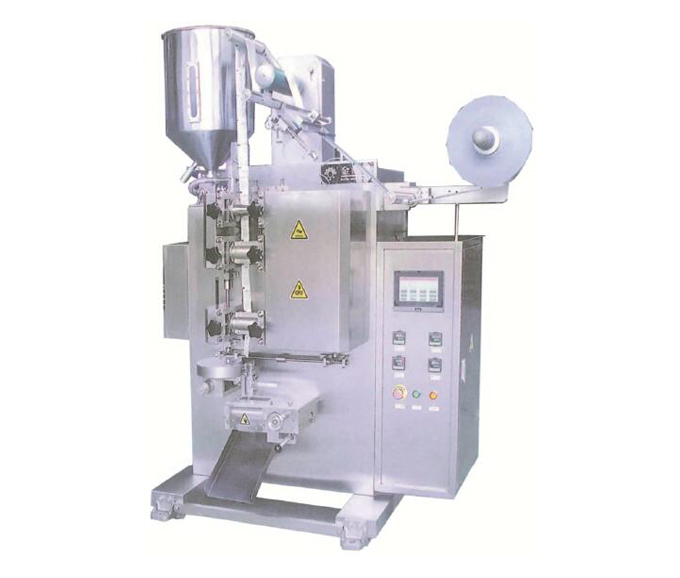

OCL-120/200雙伺服連續式醬料/液體全自動包裝機 Double servo continuous sauce/liquid automatic packaging machine
全國服務熱線：
159-1595-6886（微信同號）
用途：Application
包裝各種醬類、液體、膏體、粉末、顆粒等物品。
Packing different kinds ofjam，liquid，cream powder, granule material.
特點：Characteristics

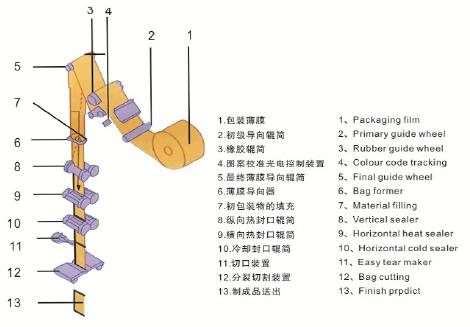

OCL型智能連續式包裝機可針對粉末，顆粒，液體，膏體等不同物料實現三邊封口或四邊封口的包裝。采用了先進的工業計算機控制系統，學習日本機型設計，可方便的等不同袋子長度，包裝速度。包裝計量調整變化。該機有三組熱輥筒。封口采用棋盤紋配合防漏線?？蓪崿F(xiàn)單雙列連續包裝要求。另外該機還裝備有方便開袋的易撕切口裝置。
OCL type automatic continuous packing roachire was designed for packing materiallike: powder, granule, liquid，paste etc to achieve different seal requirement like 314 sides seal.Adopt advanced industrial computer control system and learn from the Japan technology. it is easy to adjust the bag length, packing speed.filling rate. This machine has three sets of roller sealer. Sealing effect adopt black plaid with Leakproof line. Singleldouble line packing bag is available Also with the easy tear device.
技術參數：Technical Parameter
| 袋型 Sachet type | 三/四邊封3/4 sides seal | |
| 袋子尺寸范圍 | 最大尺寸Max.Size | 200mm(W)x240mm(L) |
| Sachet size range | 最小尺寸Min.Size | 40mm(W)x60mm(L) |
| 計量范圍 Filling Rate | 60-400m1(custamized) | |
| 包裝速度 Packfng Speed | 30-80 bagslmin | |
| 主機功率 Electricity Pawer | 5.5kw | |
| 電源要求 Working Voltage | 380V/50Hz | |
| 卷膜直徑 Film Roll Diameter | 450 mm | |
| 最大膜寬 Max Film Width | 400mm | |
| 機器尺寸 Machine dimension | 1400x1000x1800mm(LX-120) | |
| 1500x1100x2300mm(LX-120) | ||
| 機器重量 Machine Weieht | 550-650kg | |
